Detecting FTP Brute-Force Attacks Using Wireshark

Introduction

Brute-force attacks involve an attacker trying many username and password combinations to gain unauthorized access to a service like FTP. Since FTP transmits data in plain text, these attacks can often be identified by analyzing network traffic.

In this guide, I’ll walk you through how I used Wireshark to detect a brute-force FTP attack. We’ll cover how to filter traffic, recognize suspicious patterns, and confirm whether the attacker successfully logged in—all in a simple, step-by-step way.

📝 Note: When analyzing logs or packet captures, it’s easy to feel overwhelmed. To stay focused, always ask:

1. What am I looking for? Are you investigating a login anomaly, malware activity, or data exfiltration?
2. When did it happen? Narrowing the timeframe helps reduce noise.
3. Where should I look? Focus on relevant systems, protocols, or hosts.
4. What can I ignore? Filter out normal, known-good activity.

---

Filtering FTP Traffic

The first step is to filter for FTP traffic using ftp as the display filter.

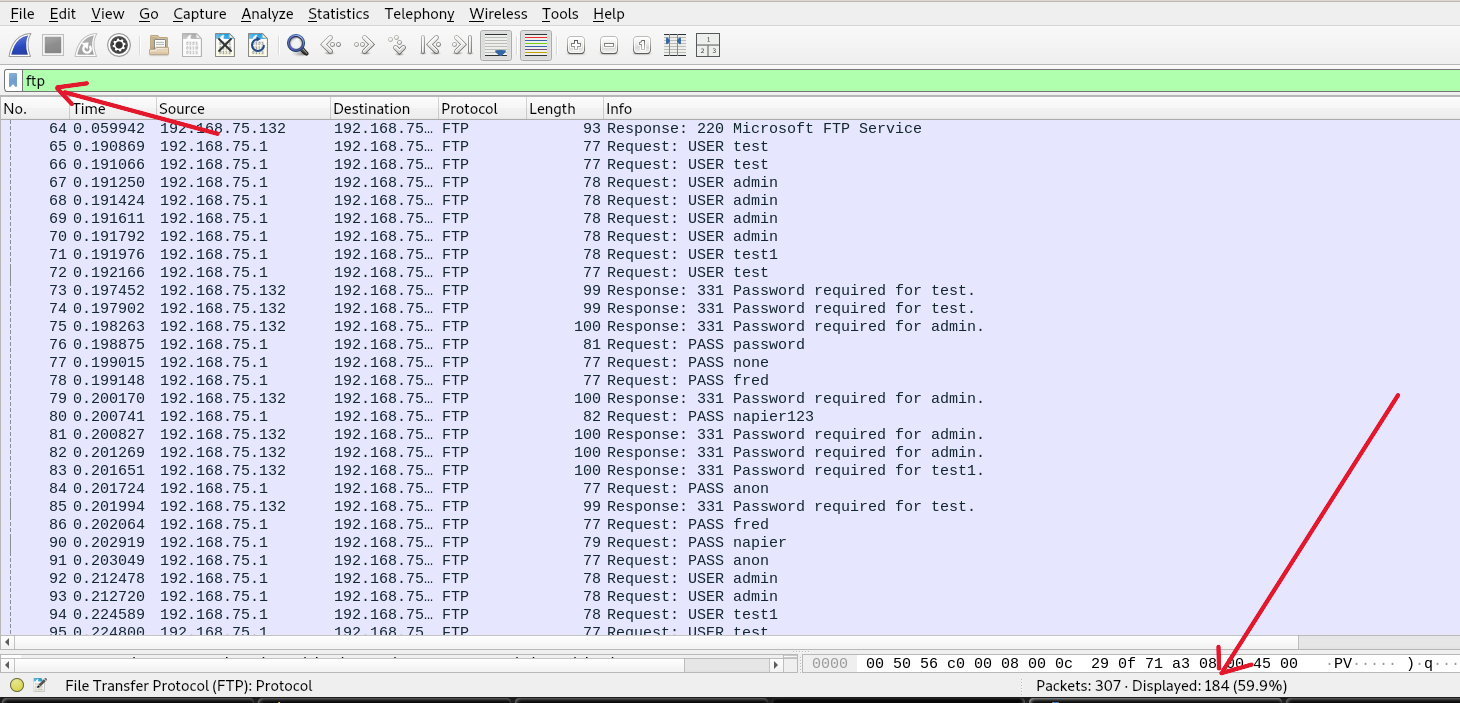

As shown in the image above, we filtered the traffic to only show FTP packets—184 out of 370 packets—helping reduce noise and focus on the relevant data.

---

Repetitive Login Attempts

Brute-force behavior is evident when you see multiple USER and PASS commands within a short time span, especially from the same source IP.

Use the following filters:

wireshark
ftp.request.command == "PASS"
ftp.response.code == 530

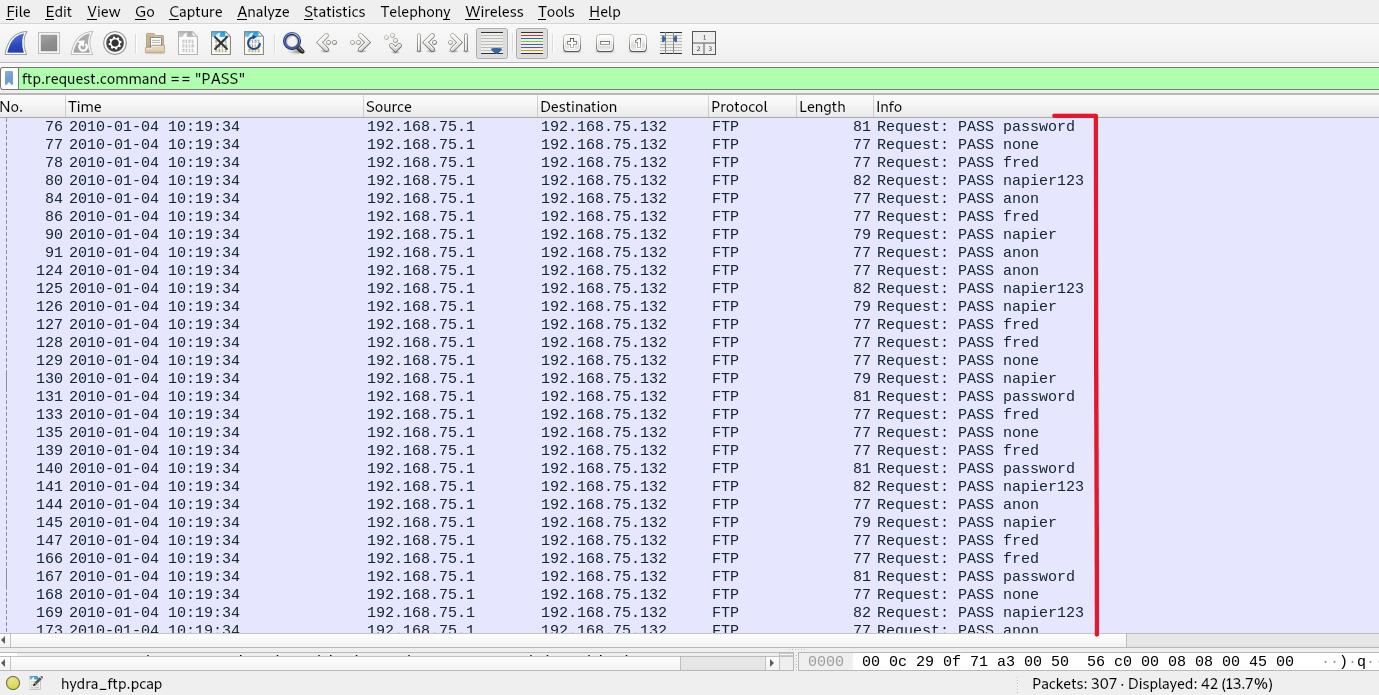

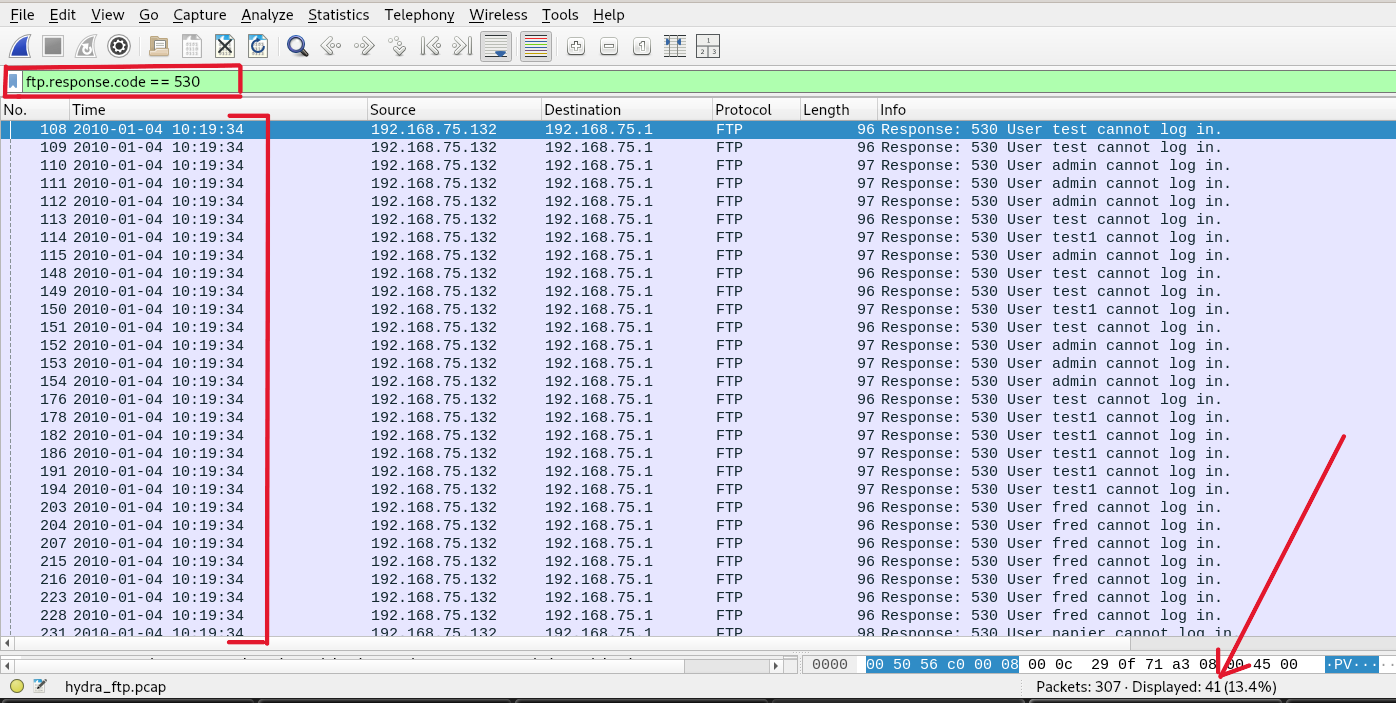

The image above shows several failed login attempts occurring within seconds—clear signs of an automated brute-force tool.

You can also see the list of attempted usernames and passwords, along with server responses indicating login failures.

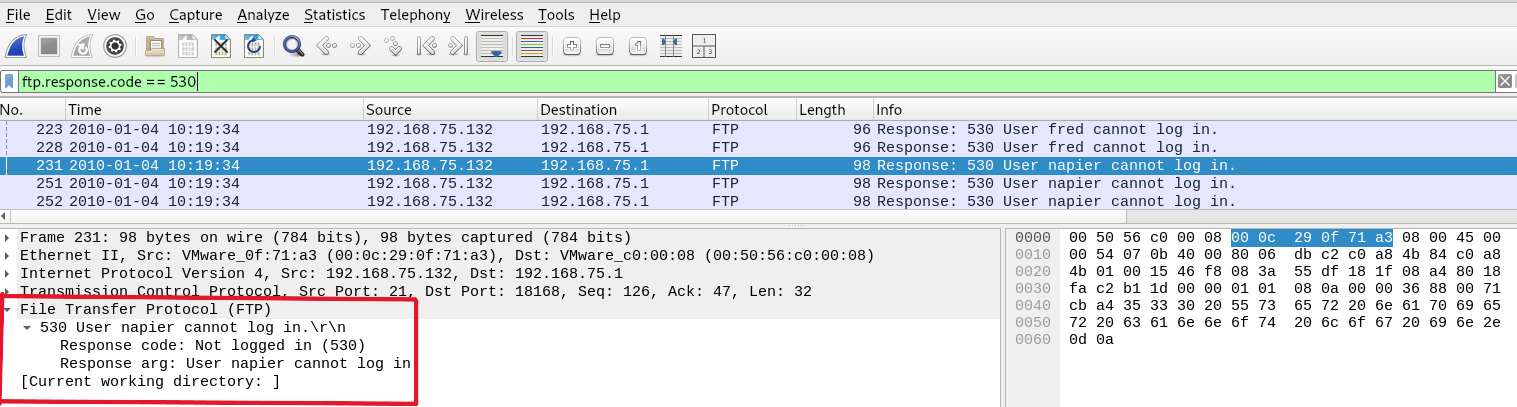

The response code 530 and message “User napier not logged in” confirms authentication failures.

---

Identifying a Successful Login

To check for a successful login, use the filter:

wireshark
ftp.response.code == 230

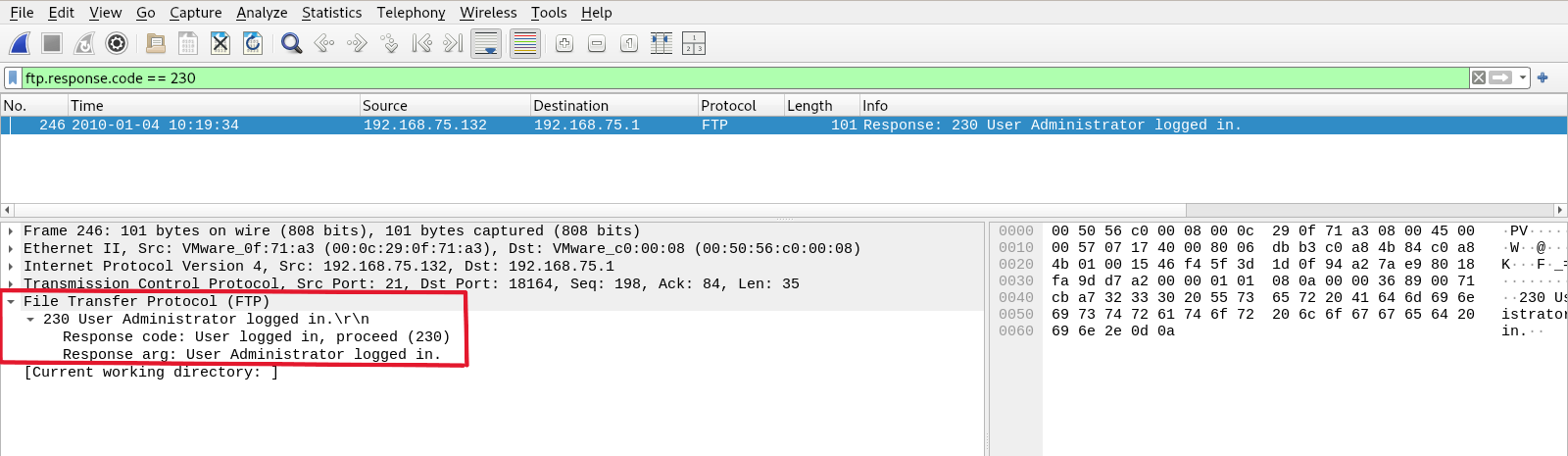

Here, we see that the user “administrator” successfully logged in. The response code 230 confirms the login was accepted.

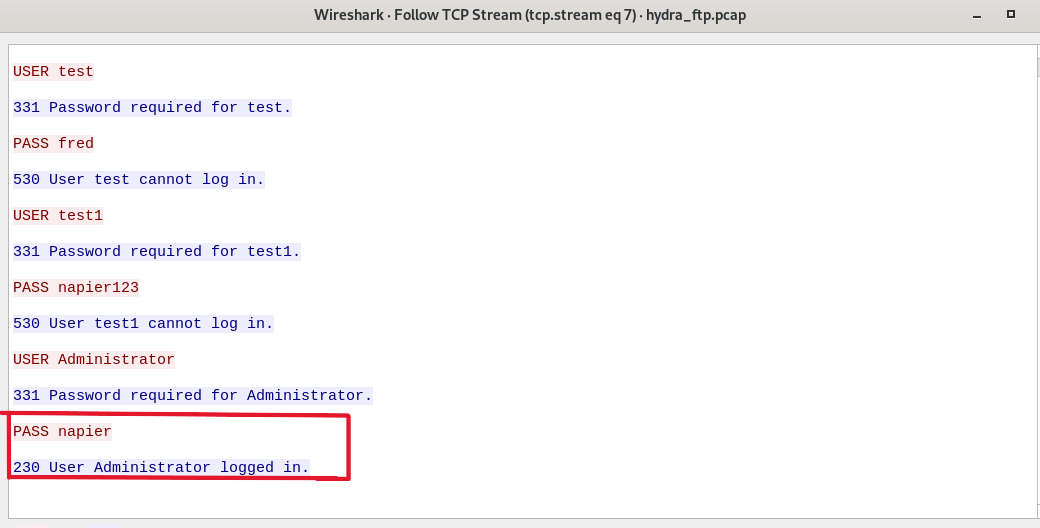

To determine the password used, follow the TCP stream:

In this case, the password used was napier. Since FTP transmits data in plain text, all credentials are visible in the packet capture.

🔐 Once a successful login is confirmed, the security team should immediately isolate the affected system and begin incident response procedures.

---

Important FTP Response Codes

✅ Positive Completion Replies

🟡 Positive Intermediate Replies

⚠️ Transient Negative Replies

❌ Permanent Negative Replies

---

🔍 Useful Wireshark Filters for FTP

Basic FTP Commands

Data Transfer-Related

FTP uses two channels:

• Control: TCP port 21 (commands)
• Data: Random port (file transfers)

---

This analysis gives a clear picture of how brute-force attacks on FTP look in Wireshark. By focusing on login attempts, timing, and server responses, you can easily detect unauthorized access attempts and take the necessary steps for response and containment.
